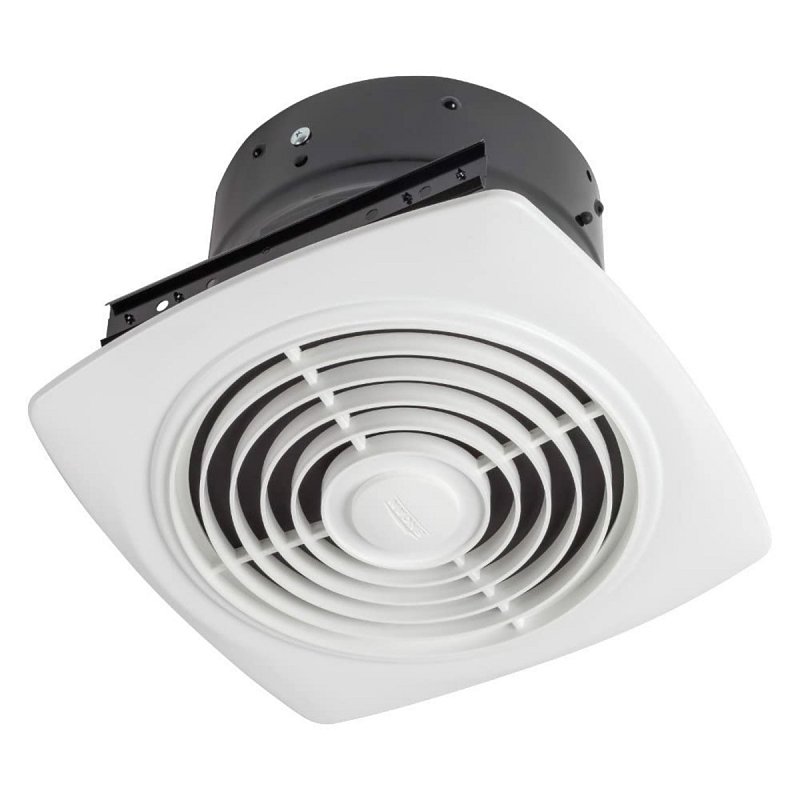

Broan 505 Verticle Discharge Fan, 8 in L, 8-1/2 in W, 1.5 A, 120 V, 180 cfm Air, Steel, White

Broan

$102.04~~$102.04~~

Air Flow Rate: 180 cfm
Color: White
Current Rating: 1.5 A
Frequency Rating: 60 Hz
Grille Length: 11-1/2 in
Model #: 505
UPC #: 026715022854
SKU: 8225633

Your shopping list will be used for pickup in-store

Product Details

Eliminate humidity from laundry rooms, tobacco smoke from rec rooms, fumes from workshops or cooking fumes from kitchens with Broan utility ventilators.

Key Features

Galvanized steel housing installs easily between ceiling joists
Steel mounting brackets with keyhole slots for fast installation
Contemporary styling for modern homes
White polymeric grilles can be painted to match any decor
Permanently lubricated, thermally protected, plug-in motor
Specially designed fiberglass-reinforced fan blades
Motor assembly offers fast, easy twist-lock installation
Housing 25 ga finished with rugged electrically bonded epoxy paint
Model 505 (8 in model) has built-in backdraft damper
Adjustable mounting brackets with keyhole slots span 14 to 24 in

Item Specifications

Air Flow Rate	180 cfm
Color	White
Current Rating	1.5 A
Frequency Rating	60 Hz
Grille Length	11-1/2 in
Grille Material	Plastic

Grille Width	11-1/2 in
Length	8
Material	Steel
Mounting Type	Ceiling
Voltage Rating	120 V
Width	8-1/2
